CS 46B  Lecture 10
Preclass reading
Two Golden Rules for Pseudocode
 Each pseudocode statement corresponds to one or a small number of Java statements
 Good: ch = first character of str
 Good: Set all elements of arr to 0
 Bad: Break the input into strings in the other set and not in the other set
 How do you do that?
 The point of pseudocode is settling such a question before coding
 Each pseudocode statement can be unambigously translated to Java
 Good: Add c0 to the end of p
 Good: k = n / 2 if n is even or (n + 1) / 2 if n is odd
 Bad: Add the first half of the points to p
 What is “the first half” if the number of points is odd?
 The point of pseudocode is settling such a question before coding
Selection Sort
 Find the smallest and swap it with the first element
 Find the next smallest. It is already in the correct place
 Find the next smallest and swap it with first element of unsorted portion
 Repeat
 When the unsorted portion is of length 1, we are done
Selection Sort on Various Size Arrays^{*}
n
Seconds
10,000
0.786
20,000
2.148
30,000
4.796
40,000
9.192
50,000
13.321
60,000
19.299
 Doubling the size of the array more than doubles the time needed to sort it
 Look closely: 10,000 > 20,000 > 40,000 or 30,000 > 60,000
 Doubling the size makes the running time go up about four times
^{*} Obtained with a Pentium processor, 2 GHz, Java 6, Linux

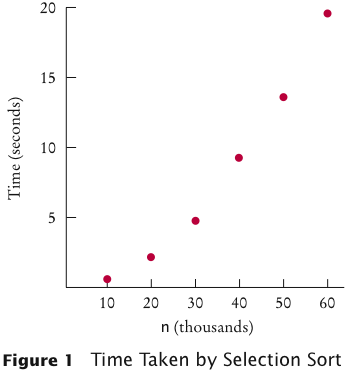

Selection Sort on Various Size Arrays
Lecture 10 Clicker Question 1
On that particular machine, how long would it take to sort an array of 100,000 elements?
 About 8 seconds
 About 26 seconds
 About 53 seconds
 About 100 seconds
Analyzing the Performance of the Selection Sort Algorithm
 In an array of size n, count how many times an array element is visited
 To find the smallest, visit n elements + 2 visits for the swap
 To find the next smallest, visit (n  1) elements + 2 visits for the swap
 The last term is 2 elements visited to find the smallest + 2 visits for the swap
Analyzing the Performance of the Selection Sort Algorithm
 The number of visits:
 T(n) = n + 2 + (n  1) + 2 + (n  2) + 2 + . . .+ 2 + 2
 This can be simplified to n^{2 }/2 + 5n/2  3
 5n/2  3 is small compared to n^{2} /2 – so let's ignore it
 Also ignore the 1/2 – it cancels out when comparing ratios
Analyzing the Performance of the Selection Sort Algorithm
 The number of visits is of the order n^{2}
 Using bigOh notation: The number of visits is O(n^{2})
 To convert to bigOh notation: locate fastestgrowing term, and ignore constant coefficient
 n^{2 }/2 + 5n/2  3 > O(n^{2})
 Multiplying the number of elements in an array by 2 multiplies the processing time by 4
 T(2n) / T(n) = (2n)^{2}/n^{2} = 4n^{2}/n^{2} = 4
Lecture 10 Clicker Question 2
How long would it take to sort an array of 1,000,000 elements?
 About 10 times as long as sorting an array of 10,000 elements
 About 100 times as long as sorting an array of 10,000 elements
 About 1000 times as long as sorting an array of 10,000 elements
 About 10,000 times as long as sorting an array of 10,000 elements
Lecture 10 Clicker Question 3
Here is the Albanian sort algorithm:
Randomly shuffle the array
Check if it is sorted
If not, repeat
What is the bigoh complexity?
 O(n^{2)}
 O(2^{n})
 O(n^{n})
 None of the above
BigOh Isn't Just for Sorting
 Finding largest number in an array
 Set largestSoFar to a[0]: 1 visit
 Compare largestSoFar with a[1]: 1 visit
 Compare largestSoFar with a[2]: 1 visit
 ...
 Compare largestSoFar with a[n  1]: 1 visit
 Total: n visits
 Finding largest number is O(n)
Finding the Most Frequent Element

 Ok, that was easy: 7 is the most frequent
 But what if there are thousands of values?

 Need an algorithm
 Count how often 8 occurs
 Count how often 7 occurs
 Repeat for each element
BigOh of Most Frequent Element
 Each count is O(n) (Why?)
 There are n elements
 All counts: O(n^{2})
 Now need to find largest count
 That's O(n)
 All together: O(n^{2}) + O(n) = O(n^{2})
Lecture 10 Clicker Question 4
Maybe it's better to sort the array first? Then identical elements are next to each other, and you can find the most frequent one in a single pass through the sorted array. What is the bigOh efficiency of that, assuming that we use selection sort for the sorting?
 O(n)
 O(n^{2} + n)
 O(n^{2})
 O(n^{3})
