June 20, 2007

Version 1.01 fixes two bugs.

• Deploying GridWorld as an applet threw a security exception
• Very frequent changes to the color of an actor can cause an out of memory error

April 16, 2007

Version 1.00 is out! The last change, also requested by Robert Glen Martin, is a secret system property "info.gridworld.gui.frametitle" to change the text in the world frame from the default "GridWorld" .

March 7, 2007

Version 0.99 has a few additional pre- and postcondition tweaks.

February 8, 2007

Version 0.98 cleans up postconditions in Critter and has a couple of minor tweaks in the display code that were requested by Robert Glen Martin.

• If a grid occupants defines getTextColor and it is rendered as text, then the given text color is used. (If the text color and the fill color are the same, the inverse of the text color is used.)
• You can turn off tooltips by setting the system property "info.gridworld.gui.tooltips" to "hide".

November 12, 2006

Version 0.97 adds postconditions in Critter and has a couple of minor tweaks in the display code:

• The order of selecting actor displays has changed. A display class is now given preference to a GIF image.
• A Grid<Color> is displayed as you would expect.

October 13, 2006

Version 0.96 makes two useful changes requested by Dave Wittry:

• It is now possible to call setMessage on an ActorWorld and have the message show up. Call setMessage(null) to restore the default message.
• If a grid occupant has text and color properties but no icon, and the color is black, the text is rendered in white.

July 26, 2006

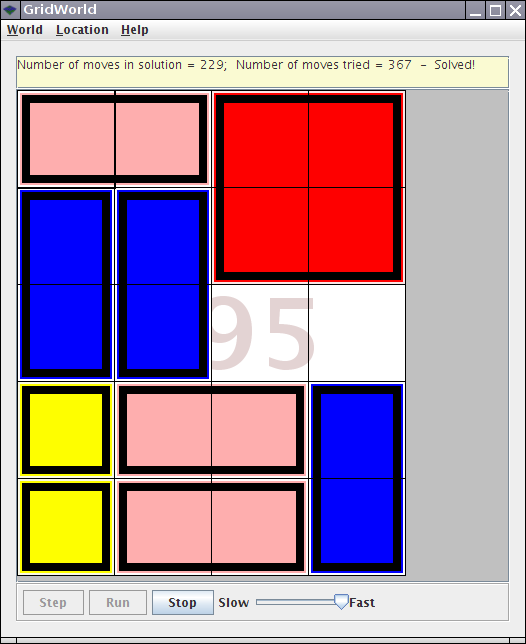

Version 0.95 cleans up rounding errors when scaling and rotating images. The preferred image size is now firmly set at 48 x 48 pixels. Images are scaled by a factor of 2, down to a minimum size of 12 x 12 pixels. (Menu icons are still at 16 x 16.)

Setting the secret system property info.gridworld.gui.selection to "hide" turns off the selection square, as requested by Robert Glen Martin for his Quzzle world.

Speaking of secret system properties, set info.gridworld.gui.watermark to "hide" if you want to take screen shots without the version watermark (such as the 0.95) in the screen shot above.

June 7, 2006

Version 0.94 lets you override the keyPressed method in custom worlds, as suggested by Evelyn Torres-Rangel.

April 25, 2006

Version 0.92 contains the images supplied by the School for the Talented and Gifted, Dallas Independent School District.

April 6, 2006

Version 0.91 contains the changes from the "Fresh Eyes" reviewer feedback.

• row, col, directionToward, numRows, numCols are renamed to getRow, getCol, getDirectionToward, getNumRows, getNumCols
• getNeighborLocation, getValidNeighborLocations, getOccupiedNeighborLocations, getEmptyNeighborLocations, findValidNeighborLocations are renamed to getAdjacentLocation, getValidAdjacentLocations, getOccupiedAdjacentLocations, getEmptyAdjacentLocations, getLocationsInDirections
• getLocationsInDirections is moved from Critter to CrabCritter
• The World.getRandomLocation method and GUI now check for invalid locations in a grid, making odd-shaped grids possible (such as the triangular unbounded grid below). Invalid locations are shown in gray. (No, this is not for students in the exam but a bone to throw to the grid enthusiasts.)


March 15, 2006

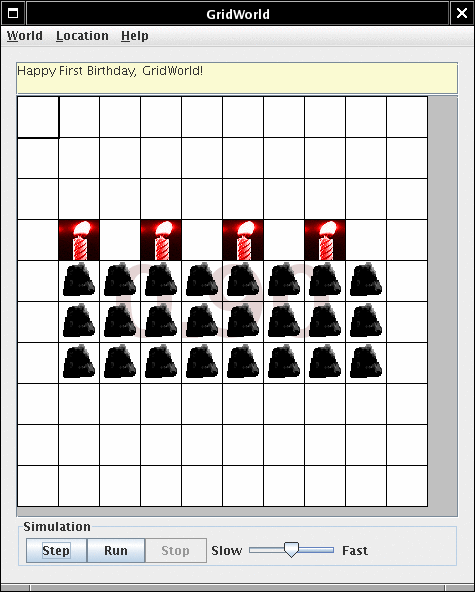

Happy First Birthday, GridWorld!

Version 0.90 contains the first version for the "Fresh Eyes" review. No functional changes from 0.24; just cleaner comments/formatting and a couple of minor bug fixes in the GUI.

March 6, 2006

Version 0.24 contains the changes of the March 5 committee discussion.

• Chameleons turn to the direction in which they move

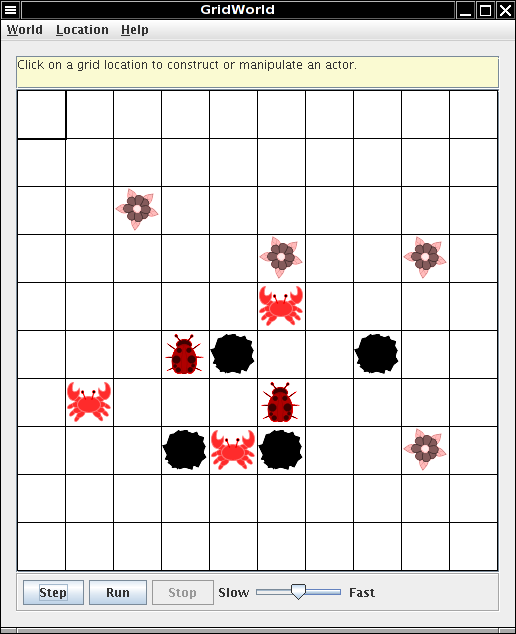

• Crabs randomly turn left or right when they can't move (I tried half-left/half-right and it looked very odd.)
• There is now a CritterRunner
• When I ran the critter runner with multiple critters, they devoured each other until only one was left standing. I changed the critter behavior so that critters don't eat other critters (or rocks).
• CrabRunner uses bugs as crab prey. Bugs aren't critters so they are food!
• The one-parameter add method is now in ActorWorld.
• UnboundedGrid no longer uses the addAll method.

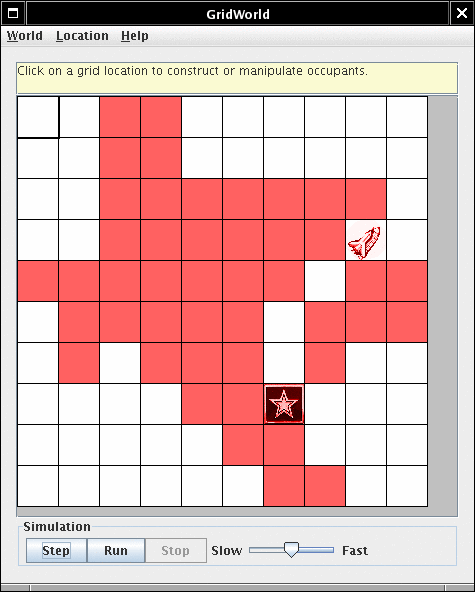

Here is SIGCSEWorld, preserved for posterity.

February 23, 2006

Version 0.23 is a minor tweak of the "simplified" version.

• I added a helper method getValidNeighborLocations to Critter to simplify the CrabCritter code.
• I cleaned up the copyright notices.

January 30, 2006

Version 0.22 (unofficial) is an existence proof of today's discussion

• All "A" level classes are concrete (i.e. Actor and Critter)
• Actor has a nontrivial act method
• Critter has a nontrivial processNeighbors method
• Critter is in the framework
• CrabCritter eats deterministically
• ChameleonRunner and CrabRunner are visually less busy
• (Minor point) By default, actors are now blue--Reg didn't like the black default.
• (Minor point) Is there still a need for rocks to be always black? Or blue? I took it out for now.

Again, this is just a proof of concept that will hopefully be an inspiration, not an official release.

January 4, 2006

Version 0.21 has these changes:

• New project code from Barbara and Chris

December 13, 2005

Version 0.20 has these changes:

• The framework code is now in the info.gridworld package.
• The misleading comment for the ActorWorld() constructor has been fixed.
• The messages for the exceptions are more student-friendly.

December 6, 2005

Version 0.19 has these changes:

• ActorWorld doesn't add rocks to the constructor menu

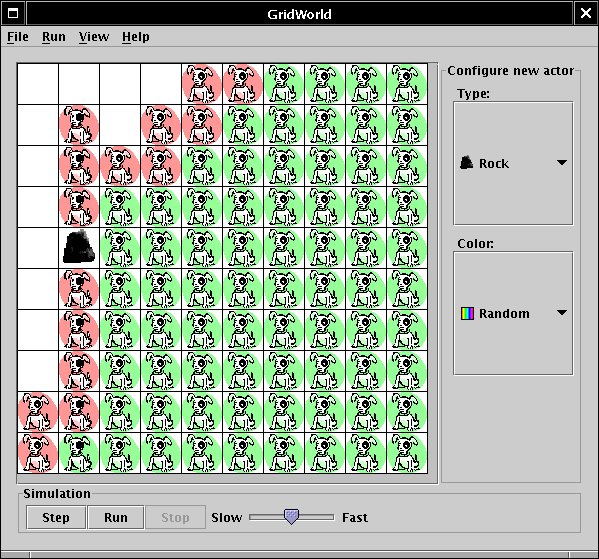

• The AbstractCritter and SimpleCritter are now in the rockHound sample directory.

December 2, 2005

In this version, all classes except the critter and GUI classes are presumed stable.

Version 0.18 has these changes:

• The Actor.turnBy method has been removed. Use setDirection instead.
• Bug.move no longer has the canMove check. If a bug moves to a location outside the grid, it is removed from the grid. (That is, Bug.move may do undesirable things but it won't throw an exception.)
• By default, critters cannot be added through the ActorWorld GUI. (They can be added through the GUI if they are already present in the grid or someone has called World.addOccupantClass.)
• SquareDancer is now BoxBug.
• I removed the GUI code to load other worlds. That reduces the number of unavoidable "unchecked cast" warnings.
• I removed WorldApplet. Nobody showed an interest in it, and it is easy enough for anyone to make their own applet, following these steps:
  1. Turn a runner class into an applet, like this:

     import java.awt.Color;
     import javax.swing.JApplet;
     import javax.swing.JFrame;
     import com.collegeboard.gridworld.actor.Actor;
     import com.collegeboard.gridworld.actor.ActorWorld;
     import com.collegeboard.gridworld.grid.Location;
     import com.collegeboard.gridworld.gui.WorldFrame;

     public class BoxBugApplet extends JApplet
     {
        public void init() // insted of main
        {
           ActorWorld world = new ActorWorld();
           BoxBug alice = new BoxBug(6);
           alice.setColor(Color.ORANGE);
           BoxBug bob = new BoxBug(3);
           world.add(new Location(7, 8), alice);
           world.add(new Location(5, 5), bob);

           // call this instead of world.show();
           JFrame frame = new WorldFrame<Actor>(world);
           setContentPane(frame.getContentPane());
           setJMenuBar(frame.getJMenuBar());
         }
     }

  2. Supply an applet tag, like this:

     <applet
               code="BoxBugApplet.class" width="500" height="600"
               archive="gridworld.jar">
     </applet>

  (If the applet doesn't show up, you don't have Java 5 integrated with your browser.)

November 21, 2005

Version 0.17 has these changes:

• I removed the assert statements in Actor and replaced them with exception throws instead. They did little good since few people run their programs with assertions enabled.
• I fixed a bug that Ann reported. If a critter had nowhere to go, an AIOOBE was thrown.
• Exceptions inside reflective method invocations (i.e. those called by selecting a method by clicking on an actor) are now displayed in the GUI.
• The exception dialog has a copy button that copies the stack trace to the clipboard. If you unexpectedly get one of these, click Copy, then paste it into an email message to me.
• The Critter.act method now calls Critter.makeMove so that a move can also involve turning, throwing rocks, etc.
• ActorWorld.step only calls Actor.act when the actor is still in the grid (and hasn't been removed by a previous actor in the same step).
• Actor.setDirection has been added.

November 19, 2005

Version 0.16 has these changes:

• Actor is now Bug (with a crummy generic image--we'll get a better one for the final release)
• Actor.moveTo now checks its preconditions better (thanks to Reg)
• Long method return values show up in a scrolling text area

November 9, 2005

Version 0.15 has these changes:

• I cleaned up the javadoc comments to reflect the recent refactoring.

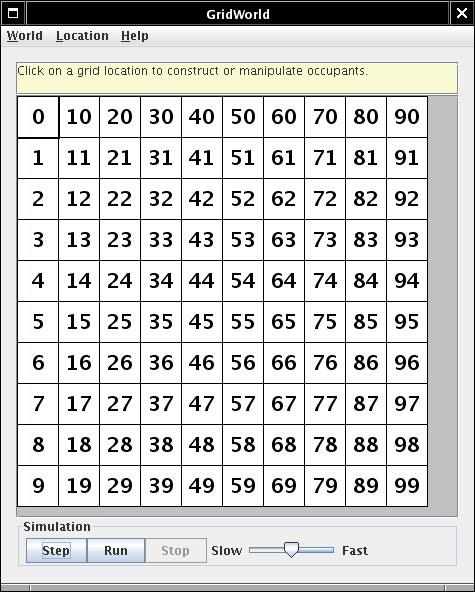

• The GUI can now display grids that contain integer objects, so that Ann can work on her free response problem.

   public static void main(String[] args)
   {
      Grid<Integer> grid = new BoundedGrid<Integer>(10, 10);
      for (int i = 0; i < 10; i++)
         for (int j = 0; j < 10; j++)
            grid.put(new Location(i, j), i + 10 * j);
      World<Integer> world = new World<Integer>(grid);
      world.show();
   }




  Just for fun, delete a cell (Hit the Delete key or pick Location -> Delete from the menu) and then right-click on the empty location.

November 5, 2005

Version 0.14 has these changes:

• As Chris suggested, it was a very bad idea to put the template method in Actor and to override it in subclasses. The code has been reorganized.
• What used to be a Critter is now an Alien. As we all know, aliens drop wilting flowers as they move about. You can subclass Alien for particular patterns such as crop circles (or, for simplicity, squares). (Note: The current Alien image is not the final image!)
• The template method is now in Critter. A critter no longer drops flowers. It just roams about aimlessly, crying out to be subclassed. You subclass Critter to get more interesting roaming behavior (such as the rock hound etc.)
• The template method has been gussied up a bit, to give us more flexibility. That's as flexible as we'll ever want it.
• The implementation of the Actor class is no longer of interest to students. It just contains plumbing (putSelfInGrid etc.) Very nice!
• The Alien class is now simpler since it no longer tries to be an example for the template method pattern. Just act, move, and turn. Very nice!

November 4, 2005

Version 0.13 has these changes:

• Major code cleanup resulting from committee discussions
• Actor now has this important template method:

     public void act()
     {
        ArrayList<Actor> neighbors = getNeighbors();
        processNeighbors(neighbors);
        Location loc = getNextLocation();
        moveTo(loc);
     }


  This gives us four extension points for modifying the behavior of actors:
  • getNeighbors gets the neighbors in the eight compass directions by default, but it could get others.
  • processNeighbors does nothing by default, but it is typically overridden. For example, RockHound removes the neighbors that are rocks.
  • getNextLocation gets the current location by default (so that the actor doesn't move), but it is typically overridden. For example, Critter gets the next location in the current direction, and RockHound gets a random empty neighbor location.
  • moveTo can be decorated for special effects. For example, Critter overrides it to drop flowers.
• All examples except for SquareDancer, RockHound, and TileGame have been removed.
• Actor.turn has been renamed to turnBy. Critter still uses turn.
• Actor is once again a concrete class.
• Critter no longer has setTracing.
• AbstractGrid is back, with convenience methods for enumerating valid, empty, and occupied neighbor locations, and neighbors. Conceivably, one could subclass BoundedGrid and change getValidNeighborLocations. The other methods depend on that one.

November 1, 2005

Version 0.12 has these changes:

• I added the sample projects that Barbara and Chris provided. (I made a minor change and used standard Java classes for the stack and queue.)
• Since Barbara and Chris didn't seem to like the feature that loads projects dynamically, I temporarily deactivated it. If nobody misses it, it will be gone for good (even though it contains some really cool code :-))

October 23, 2005

Version 0.11 has these minor changes:

• Actor is now an abstract class
• The Location class has a method directionToward that gets the compass direction for moving towards another location.

October 8, 2005

Version 0.10 only has a couple of minor changes, as requested by Chris:

• In Actor, change putInGrid to putSelfInGrid and change removeFromGrid to removeSelfFromGrid
• The constructor menu now shows any occupants that have ever been observed in the environment

September 28, 2005

Some cleanup, as prompted by Chris' questions

• The Grid methods throw a NPE if a location parameter is null and an IAE if it is invalid. No more guesswork.
• The compass directions and getNeighborLocation method are now in Location, and getValidNeighborLocations is now in Actor.  The Grid is a 2D array, pure and simple.
• AbstractGrid is gone, and while I was at it, I eliminated AbstractWorld as well. We're down to 10 visible classes and interfaces! (The MBS had 17)

September 27, 2005

Only three minor changes

• This build has the com.collegeboard.gridworld.world package, as previously threatened.
• If you change the grid, the occupants are moved from the old to the new grid (provided the locations are valid in the new grid)
• There is now a menu option Edit->Delete (with the Delete key as shortcut)

August 24, 2005

This build has just a few cosmetic changes to improve the out-of-box experience.

• The zip file is reorganized. There are no longer zips inside zips.
• I improved the usage instructions in the manual.
• The package structure is simplified. Students only need to care about com.collegeboard.gridworld.grid and com.collegeboard.gridworld.actor. Everything else is in com.collegeboard.gridworld.gui. (It may be necessary to add another package com.collegeboard.gridworld.world. There are a few methods of the World interface that students need to know when they build their own worlds.)
• I added simple "launcher" classes to the samples, making the launch process less mystifying.
• I fixed the problem that Windows users had with loading other worlds. (Thanks Ann!)
• I fixed a bug in the definition of the Grid compass directions. (Thanks Laurie!)

April 15, 2005

Here is the latest GridWorld build. This time, the distribution is quite different. Unzip the file, and you get

• a file gridworld.jar that is both an executable program and a library for compiling extensions
• a file projects.zip that contains sample projects. Unzip anywhere you like
• a file src.zip containing all source code

Now open a command shell and type

java -jar gridworld.jar

The GUI comes up with a starter world. To load a different world, select World -> Load Project and navigate to one of the project  directories. (You select the directory and accept the file dialog; no need to enter it. It's just like in BlueJ.) The GUI now loads main all classes in the project directory. This setup greatly simplifies the students' life. They no longer need to write a method. They merely subclass Actor and, optionally, SimWorld , compile the classes, and launch the GUI. If the project files are recompiled, there is no need to close the GUI. Simply reload the project, and the newest versions of the classes are loaded. The GUI can also be run as an applet. However, then it can only show a single world. To make an applet, zip up the project and make an applet tag like this:

<applet code="com.collegeboard.gridworld.gui.WorldApplet"
    width="500" height="600"

    archive="squaredancer.zip,gridworld.jar">
</applet>

Have a look at the Stepper project. This example extends StepWorld , not SimWorld . In the run method, the student writes code such as the following for loop practice.

      int n = 5;
      for (int i = 1; i <= n; i++)
      {
          for (int j = 1; j <= 2 * i - 1; j++)
          {
             add(new Location(i, n - i + j), new Rock());
             pause();
          }
      }

Whenever the pause method is called, the StepWorld pauses until the user clicks the Step button.

The GUI gives students a visual way for debugging loop problems. This has nothing to do with the case study, but if teachers can put the framework to good educational use, it should make it more attractive.

April 7, 2005

Here is the latest GridWorld build--again distributed as source-only. This version requires Java 5.

Unzip and compile with javac *.java . Make sure that you do not have a CLASSPATH that contains a previous version, or the current case study.

Changes:

• I took up the challenge of making the GUI independent of the Actor class. The GUI can now manipulate a Grid<T> for any type T. To drive home the point, I now have two packages com.collegeboard.grid and com.collegeboard.sim. The latter contains Actor and its subclasses Critter, Rock, and Flower, as well as the SimWorld which contains the act loop.
• Several people said that they preferred if every actor knows its location, and I put that in as an experiment. It definitely simplifies life for beginners--see the critter example. I realize that it is possible to mess up the actor if one calls grid.put(loc, actor) instead of actor.putInGrid(grid, loc). However, rank beginners won't even see the grid--they just insert the actors into the world.

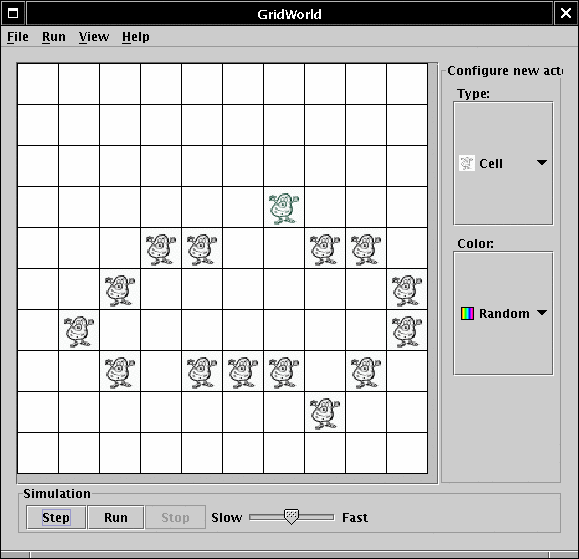

• I took out plan--it turns out to be unnecessary; see the revised LifeDemo demo if you care about the details.
• There is now a keyboard navigation interface. Not only is it more "accessible" for people with certain handicaps, it also makes navigating in an unbounded grid less confusing. Simply move the highlighted square with the arrow keys. Hit Enter to edit the cell. No mouse-clicking is required.
• I added a message panel to the top of the display. This could be useful if the GUI is used for other purposes, e.g. a game. Then there could be messages such as "Player A clicks" or "Illegal move".

Things to Try

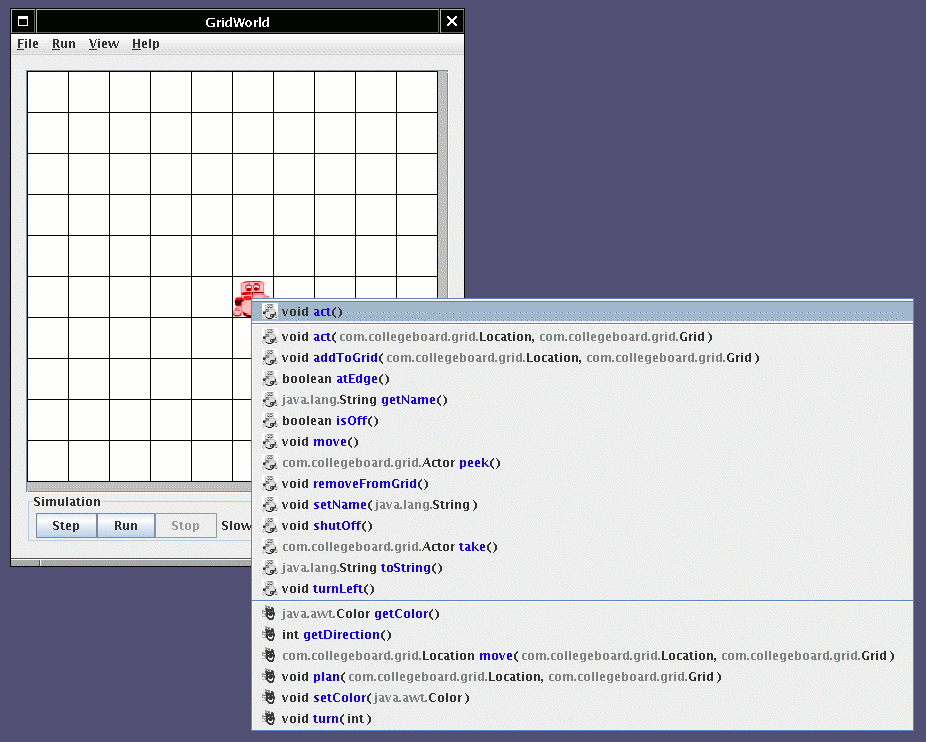

• Run the CritterDemo and have a look at the code. This would be the first example that a student sees. Is it straighforward enough?
• Replace the code in the act method with

  if (canMove()) move(); else {
        turn(); turn(); turn(); };

• Add another critter. Change its color by clicking on it and calling setColor. Run the simulation with both critters.

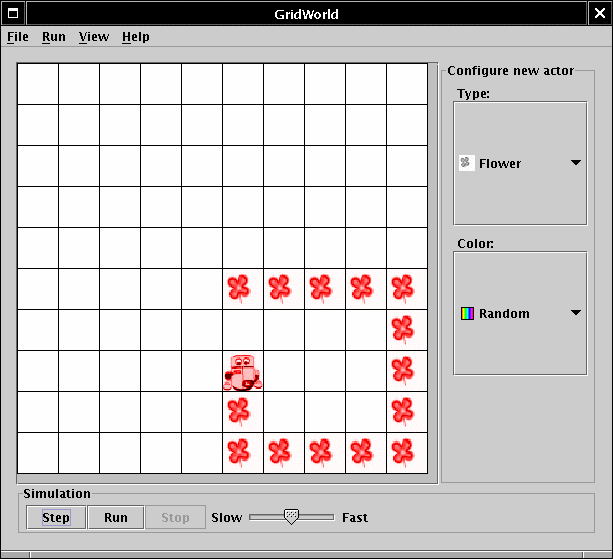

• Run the SquareDancer demo and have a look at the code. This might be an introduction into the use of instance fields. Is it straightforward enough?
• I think it would be good if the case study could be used for a lab or two at the beginning of the course, then set aside. Later, one may want to pick it up again to study inheritance. The Eater/RockHound/SmartRockHound are an example. Look at the Eater class. Students are supposed to design effective eaters by overloading forage and roam. RockHounds eat rocks. The SmartRockHound is smarter than the basic RockHound; it remembers the positions that it already visited and tries not to go there again. Do the added brains really help it? Run the EaterDemo and mouse over the hounds to check the count.

Questions

• What do you think about the fact that all actors know their location? Should I rename getGrid(), getLocation() to grid(), location() for old time's sake?
• I always wondered why we have the "getNeighbors" methods in the Grid class. Do you want them there? That would make the grid potentially more useful for asking questions (such as in the "connect 4" game) when we want a grid but not actors. But it also means that students write a lot of code like getGrid().getAllNeighborLocations(getLocation()).
• I find that I write a fair amount of repetitive code such as "get all empty neigbor locations, get all occupied neighbor locations, get all neighbors". I could put convenience methods into Actor. Or is it the intent that students learn how to write this kind of code?
• Does anyone want the "Run" menu with the "Run indefinitely, Run n times, Prompt me" options in the GUI? I'd love to kill it in the interest of simplicity.

March 31, 2005

Here is the latest GridWorld build--again distributed as source-only. This version requires Java 5. Don't look to close into the internals. It is still quite messy.

Unzip and compile with javac *.java .

This week's big news is a significant change in the user interface. I had tried to integrate GridWorld into BlueJ. I wanted to call a method on the critter and have the critter move, but it didn't really work. So I decided to steal an idea from BlueJ. When the user clicks on an actor in the grid, all methods pop up, and you can call any of them.

If the method has parameters, you get to specify them.

The change is immediately reflected in the display.

Très cool, if I may say so. If you click on an empty cell, you get a list of constructors.

The "actor panel" to the right of the grid is no longer needed.

If you all agree that this is an improvement, I can ditch quite a bit of old code that contained ugly special cases.

Your opinions needed

• Have a look at the Grid<E> interface, the BoundedGrid<E> class, and the use of Grid<Actor> in the Robot and SquareDancerDemo classes. Are you ok with that, or is it too hardcore for the A course? The alternative is to hardwire the Actor type into the Grid. That is, a Grid would not be parameterized. It would always contain Actor objects. That isn't as crazy as it sounds--see below.
• Run the SquareDancerDemo and pop up the menu over the robot. See how nice it is that you can call turnLeft and move, and instantly see what happens.
• This works because a Robot stores its location and grid, just like the Fish did. Its methods make a valiant effort to keep the information synchronized. (Note the addToGrid call in SquareDancerDemo.) This is almost foolproof since currentGrid and currentLocation are private fields, and they are not reported through accessors. It could be even more foolproof if the Grid collaborated. If a Grid knows it contains Actor objects, its put and remove methods can synch up with the actors--that is what Alyce Brady does in her new grid framework.
• Should all Actor objects store their location and grid? If not, there is a curious asymmetry where a Robot should call myRobot.addToGrid(loc, grid), but a rock is added with grid.put(loc, new Rock()).
• On the other hand, if we take generics seriously, shouldn't the addToGrid method really have signature void addToGrid(Location loc, Grid<? extends Actor>)?
• Have a look at the color dialog. (Call setColor on an actor.) Do you like the names of all the web colors? Or should I just stick with the Java defaults for a dialog that is simpler and easier to internationalize?
• Finally, I tried to make a flock simulation, similar to this classic, but it doesn't look all that cool. Maybe someone else wants to tinker with it?

March 25, 2005

Here is the latest GridWorld build--this time distributed as source-only.

Unzip and compile with javac *.java .

Changes:

• I used packages to organize the code.
• I added several examples.
• As you know, robots drop flowers every time they move. The SquareDancer is a Robot that traces out a square.  This gives an idea how one might use this framework for teaching basic programming concepts. Run java SquareDancerDemo. (NOTE: It may not be a good idea to use robots because it creates confusion with Karel. Clearly, a square dancing critter would work just as well. I just did this to give some idea of the possibilities.)
• The LifeDemo runs a game of life. A bit inefficient, but it works.
• And my favorite...the rock hound. Rock hounds want to know where rocks are, but they are too lazy to move. Instead, they only look at their neighbors. If they don't see a rock there, they put new rock hounds into the neighboring locations. Once they did that, they keep asking their neighbors "Do you know where a rock is?" (No, I don't seriously think we should include it--it is my revenge for seeing my recursion problem gutted :-))
• I fixed all reported bugs. Thanks to Judy and Scott for your reports!
• I made the simulation loop visible in GridWorld. (Someone could subclass this to, say, GameWorld and play TicTacToe or Memory instead of running a simulation.)
• I did a lot of internal cleanup. It's down to 12 GUI classes. Sayonara SimFactory...
• Load/save should now work thanks to the magic of JavaBeans Persistence.
• I prepared for string localization, so that one can simply translate the UI strings. I bet you can't wait for the Kritter and Felsen in the RasterWelt!
• I added a bunch of links to the FAQ. If nothing else, you've got to check out the Java Hamster!

Questions:

• Is it ok to use packages? I hope it reduces Jar file confusion. Why weren't packages used in the MBS? (Note: None of the code that students supply or edit is in a package--only the library code.)
• I'd like to move this to Java 5.0. (I am tired of casts.) Would that be a problem for any of you?
• If you look into the Robot, you will see that it stores its grid and location, just like the fish did. That way, peek, turnLeft and move don't need unsightly parameters. Should all actors do that? (That's what Alyce is doing in her grid framework.)
• What is supposed to happen with the Grid in the AB course? Presumably we want to invite instructors to study alternate implementations. If so, will the grid be generic? That is, will it be a Grid<E>? Or should it store Object? Or Actor only?
• In the MBS GUI, the toolbar to the right was hidden when a simulation ran. I liked adding actors at any time, and changed the code so that the toolbar is always visible. Any preferences?

Disclaimer:

• This is still a proof of concept. As several people remarked, you don't find out the real problems until you've done a bunch of applications and extensions.
• I am only hacking away for fun. If this is adopted, I expect the college board to hire someone to do the boring grunt work.

FAQ

Q: What is it?

A: This framework was obtained from the Marine Biology Simulation framework by ruthlessly removing gratuitous complexity. I kept the parts that have proven to be most useful for asking exam questions:

• The environment (now called Grid; see below for the reason behind the name change.)
• A class that can be subclassed to create different behaviors. It's now Actor, not Fish.

The grid is simpler than the old environment for two reasons:

• It acts like a map: you place any object into a given Location
• It no longer has a state that indicates the number of neighbors. You call either getMainNeighborLocations or getAllNeighborLocations to get the N W S E or all eight neighbors. That should simplify question writing.

I also kept the excellent GUI (there is quite a bit of wizardry under the hood). I made it easy to add image files--you just supply a file with the same name as the class (e.g. Rock.gif ).

Now we have the following classes and interfaces

For A:

• Actor
• Critter
• Flower
• Rock
• Location
• BoundedGrid
• ActorWorld

For AB:

• interface Grid
• UnboundedGrid

For further extension:

• World
• extension such as GameWorld or StepWorld

Q: Why is the environment class now called Grid?

A: Grid is a four-letter word.

Q: Why another grid?

A: It's the year of the grid. Everyone and their brother has a grid framework:

• Pigs in a grid
• Jeroo: Kangaroos in a grid
• Kara: Ladybugs in a grid (auf Deutsch)
• Der Java Hamster: Hamsters in a grid (auf Deutsch)
• Greenfoot
• Alyce Brady's Grid package
• Karel J. Robot and Becker's robots

Q: What do I need to do to make my own actor?

A: (1) Overload the act method (unless it's a rock or wall that doesn't act). (2) Maybe supply a GIF image

Q: Could I do Carol-the-Robot with this framework?

A: Yes but... It is easy to make classes Carol, Wall, and Beeper. But then what does Carol do? All steps in the act method are instantly executed. You could program the act method so that it does things in steps (like the SquareDancer). Alternatively, you can place a Robot in a StepWorld and have it call  pause in its move and turn methods. However, with multiple robots, there would be nasty concurrency issues.

Q: Could I make hexagonal or triangular grids?

A: No.

Q: Why isn't there a Direction class any more?

A: It was ruthlessly eliminated, in order to minimize the number of classes. Directions are now integer values, measured in degrees. Useful constants ( Location.NORTH , Location.RIGHT , etc.) can be found in the Location class.

Q: Can you have multiple actors in a grid location?

A: I suppose one could make a Grid<Set<Actor>> , but then the simulation loop would need to be rewritten, and someone would need to write a SetDisplay.
